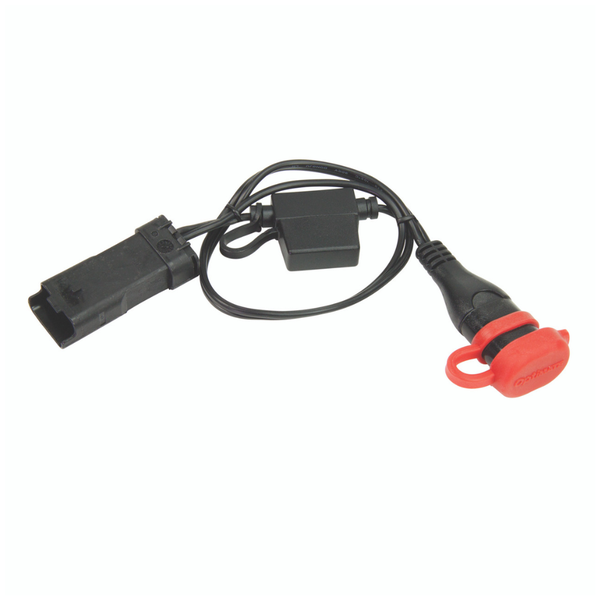

Converts the Ducati diagnostic connector to an OptiMate SAE battery charger connector.
It allows easy connection of an OptiMate to a Ducati and is especially helpful where the battery is not easily accessible. As well as enabling easy connection of your OptiMate charger, the SAE connector can also be used to connect to other OptiMate accessories – e.g. to power USB devices, heated grips, portable devices etc. Use of the O15 Y-splitter as well enables connection of more than one accessory.
Details:
-
Rated for up to 3 Amps battery charging & maintenance – protected with a 7.5A fuse
-
OptiMate heavy duty SAE connector works with all standard 2-pin SAE battery charger connectors
-
Rubber seal protects SAE connection
-
Rated for normal temperature and outdoor use
-
Thicker insulation for better protection
-
Current rating: 3A avg / 5A max
-
LENGTH: 30cm
-
CONNECTORS: Ducati >2010 to SAE
-
CABLE RATING: 18AWG (0.82mm2) SPT-1
-
FUSE: 7.5 Amp
-
USE: -20℃/-4°F very low temperature, cable remains flexible in below freezing temperatures
-
STYLE: Includes sealing cap for OptiMate heavy duty SAE connector
-
WARRANTY: 3-year limited replacement warranty
Note: If your Ducati is a Euro 5 bike, you will need the O77.
