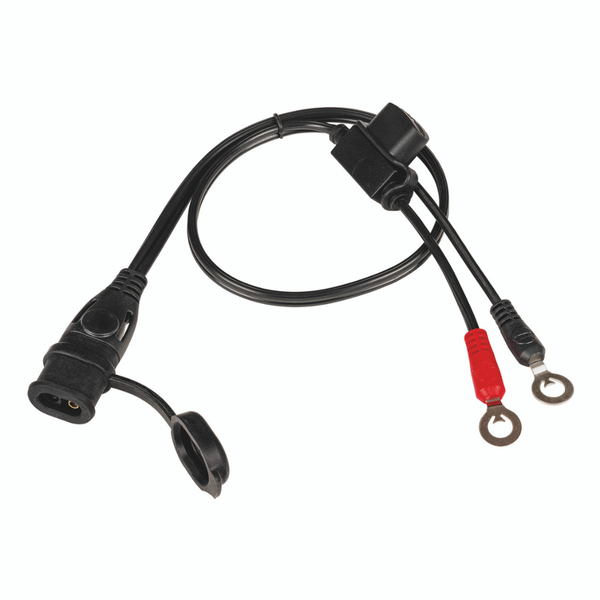

This SAE fused eyelet lead is the same as those supplied with all current OptiMate chargers. It has a rubber cover for the 2-pin connector to keep the electrical connects dry and corrosion free.
You can use additional leads to fit one to every vehicle which requires its battery to be charged – in this way one OptiMate can be used with several vehicles on a rotational basis very simply and quickly.
Simply connect the 2 ring terminals to your battery and the 2-pin connector will always be available to connect your OptiMate to without having to delve into the vehicle.
Sized for powersport batteries, the ring terminals fit standard M6 bolts on motorcycle and ATV batteries. With the adaptable dual ring technology, the terminal can be adapted to for the M8 bolt on larger ATV or small car batteries.
Details:
-
Sized for powersport batteries – Ring terminals fit standard M6 (1/4”) bolts on motorcycle, ATV, UTV & PWC batteries.
-
Designed for tight spaces – ring terminal design allows positioning out of the way.
-
Protected SAE connector – rubber cap and sheath prevent water / dirt ingress & zip-tie slits for ‘out of harm’s way’ securement.
-
Adaptable dual ring technology – Ring terminal can adapt to fit M8 (5/16”) bolt on battery terminals of large UTVs or small cars.
-
Additional green cap to identify lithium battery. The weatherproof cap protects the SAE connection against dirt and water.
-
LENGTH: 50cm
-
CONNECTORS: 1/4″ (M6) / 5/16” (M8) eyelet to SAE
-
CABLE RATING: 18AWG / 0.82mm2 SPT-2W
-
FUSE: 15 Amp
-
USE: -40℃/-40°F very low temperature, remains flexible at ‘below freezing’ temperatures.
-
STYLE: Rubber sealing cap & shroud for OptiMate heavy duty SAE connector.
-
WARRANTY: 3-year limited replacement warranty
