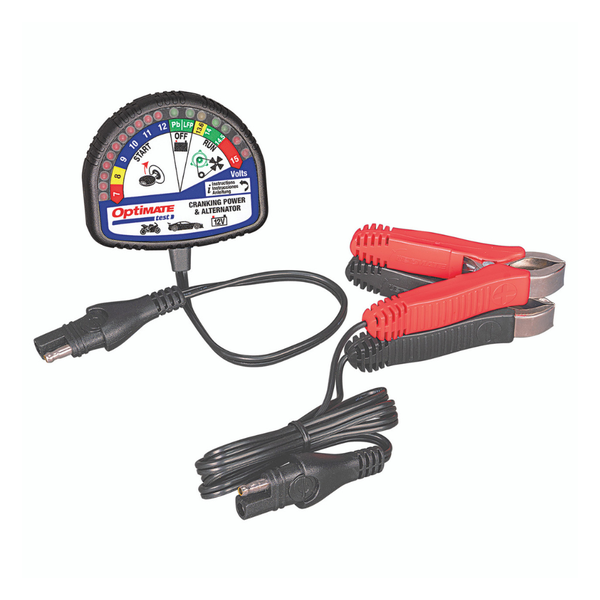

OptiMate Test - Battery & Alternator Tester
Original price was: $59.90.$17.97Current price is: $17.97.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
The ultimate pocket tester for on-vehicle battery performance & alternator voltage testing with either 12V lead-acid or 12.8V LiFePO4 starter battery – Easy troubleshooting from cranking to charging!
Connect the clips to the battery or connect to an installed SAE battery lead, then:
-
Check battery charge level. A low battery cranks (starts engine) poorly.
-
Start engine. OptiMate TEST records and indicates (for 20 sec) the lowest start volts.
-
With engine running, verify charging voltage from alternator and voltage regulator.
TIP: Low charge voltage causes poor battery performance. Too high charge voltage causes excessive gassing and will eventually damage a lead-acid battery. Too high charge voltage is FATAL for a LiFePO4 starter battery.
Details:
-
For vehicles fitted with 12V AGM, GEL and STD lead-acid or 12.8V LFP / LiFePO4 starter battery.
-
As easy as 1-2-3, connect to battery, check state of charge, start engine tester displays cranking voltage and vehicle charge voltage simultaneously – 15 sec is all you need!
-
Display cranking volts down to 6V and charge voltage range up to 15V – Check weak battery or overcharging!
-
Easy to use! Connect with the included clips to the battery or connect to an installed SAE battery lead.
-
LENGTH: 40″/100cm
-
CHARGE CONNECTOR (INPUT): 2-pin SAE (+set batteryclips)
-
OPERATION: Fully automatic
-
State of charge result in GREEN / RED LED resuls, indication of lowest start Volts when engine starts (20 sec) and running voltage from alternator & voltage regulator.
-
CABLE RATING: SPT-2W 16 AWG (1.32mm2)
-
FUSE: No fuse
-
USE: -40℃ very low temperature, remains flexible at ‘below freezing’ temperatures
-
STYLE: Fully enclosed electronic circuitry with multiple LEDs, SAE charge connector
-
WARRANTY: 3-year limited replacement warranty
